    ESC Windows Pos System Kitchen Thermal Label Printer

    Ask Lasest Price
    Brand Name : SUNLUX
    Model Number : XL-8030
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000 PCS per month
    Delivery Time : within 15 work days if less than 1000 pcs
    • Product Details
    • Company Profile

    ESC Windows Pos System Kitchen Thermal Label Printer


    80MM ESC/POS Command Support Windows Pos System Kitchen printer Thermal receipt printer POS Receipt printer

    Product Features

    • Product Name: Thermal Receipt Printer
    • 200 mm / sec low noise, high speed printing.
    • Simplified/Traditional can be freely converted by instructions.
    • Support cash box driver.
    • Support kitchen printing, network printing.
    • Support NVLOGO download image printing (picture format is BMP).
    • Built-in power supply design, more convenient and more beautiful to use.
    • Supports print head over-temperature protection to make the print head last longer..
    • Support single prompt and error alarm function.
    • Supports the loss-free function to prevent losing orders.
    • Support a variety of one-dimensional bar code printing.
    • With automatic paper cutting function.
    • With out of paper detection, black mark detection and positioning function (detection is located in the middle of the paper black mark), automatic paper loading function.
    • Product application: widely used in banking, telecommunications, takeaway, shopping malls, hospitals, supermarkets and sports lottery and other fields.

    Product Specifications


    Printing methodDirect thermal
    Printing speed260mm/s
    Paper width79.5±0.5mm
    Roll paper80mm
    Paper thickness0.06~0.08mm
    Column capacity576 dots/line 512 dots/line
    Character sizeANK,Font A:1.5×3.0mm(12×24 dots)
    Font B:1.1×2.1mm(9×17 dots)
    Simplified /traditional Chinese: 3.0×3.0mm(24×24 dots)
    Line space3.75mm(changeable using commands)
    InterfaceSerial+USB+Lan/USB+WIFI/USB
    Bar codeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128
    Code pagePC347(Standard Europe), Katakana, PC850(Multilingual),P C860(Portuguese), PC863(Canadian- French), PC865(Nordic),West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), PC858, IranⅡ, Latvian, Arabic, PT151(1251)
    Auto cutterFull/Partial(optional)
    NV FLASH256k bytes
    Input buffer64K Bytes
    Power supplyDC 24V-2.5A
    Cash drawer controlDC 24V-1A
    ReliabilityPrinting head life: 100km Auto cutter life: 1 million cuts
    Working environmentTemperature (0~45 Degree C), humidity (10~80%)
    Storage environmentTemperature (-10~60 Degree C), humidity (10~90%)
    DriversWin 9X/Win 2000/Win XP/Win 7/Win 8/Win 8.1/Linux

    Command



    Compatible with ESC/POS


    Gross weight1.16kg
    Dimension184x144x136.8mm(L x W x H)

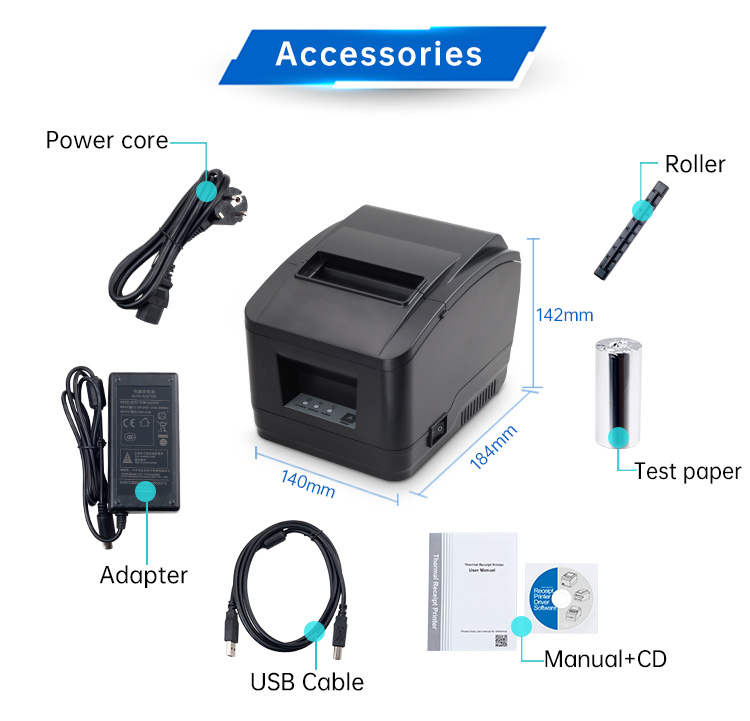

    Product Accessories

    Package includes:

    80mm mini receipt printer x 1

    USB data cable x 1

    Poiwer cabke x 1

    Power adapter x 1

    Paper roll x 1

    User manual x 1


    Application

    Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal


    FAQ

    • How to connect the 80MM printer with your software?
    • 1. Please install the printer first in your windows PC.
    • 2. Set the printer from your software "Printer Settings".
    • 3. If you don't know where to add printer in your software, please ask software supplier.

    • How to add LOGO on receipts?
    • 1. Connect the printer with windows PC via USB cable.
    • 2. Install printer driver on PC.
    • 3. Run "Setting Tool" in "Printer Driver".
    • 4. Enter "Advanced" setting, add "NV LOGO" and "Save".
    • 5. Restart the printer, you can print LOGO on every receipt then.
