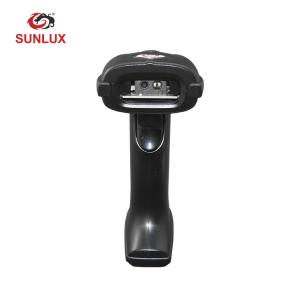

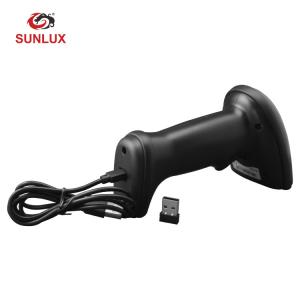

Portable Bluetooth Wireless Barcode Scanner Laser Code Reader
Product Features
Our 1D Laser barcode scanner delivers the blazing speed typical of laser scanners on both 1D
barcodes, allowing you to accommodate 1D barcodes without
sacrificing scanning quality or performance. Users never need to
take time to align the bar code with the scanner or pause between
scans. And since you can capture bar codes printed on paper labels
or displayed on the screen of a mobile phone, retailers can
accommodate customers who download mobile coupons, mobile loyalty
cards and more. You get industry leading scanning speed on every
bar code; true point-and-shoot first time scanning simplicity on
even damaged and poorly printed bar codes; and a durable design for
all day everyday reliability — all at a competitive price.
◆ No need driver, plug and play
◆ Firmware support upgrade on-line
◆ Fast and accurate in reading 1D codes
◆ 2200 mAh, standby 6 months (dormant)
◆ Bluetooth, 2.4g & USB cable mode supported
◆ Application:supermarket, hospital, ticket barrier, logistic, bank
etc.
Product Specifications
PERFORMANCE PARAMETER |
Light Source | Visible Laser Diode 650nm |
CPU | 32-bit ARM microprocessor |
Sensor | Laser |
Scan Mode | Manual & Continuous |
Wireless Performance | 2.4G: 100M communication distance (open space); Bluetooth (4.0 HID): 10M communication distance(open space) |
Scanning speed | 300 times /second |
Scanning Precision | 4mil |
Memory capacity | Up to 520,000 characters (40,000 EAN 13 barcode) |
Scanning Angle | Roll:±30° Skew:±65° |
Depth of field | 0-280mm(0.33mm,PCS=90%) |
Decoding Capability | UPC-A; UPC-E; EAN-8; EAN-13; Code39; Codabar; Code128; Interleaved
2 of 5; Industrial 2 of 5; Matrix 2 of 5; Code 93; UCC/EAN 128;
MSI; UK/Plessey; ISBN/ISSN; GS1 Databar Expanded; GS1 Databar; GS1
Databar Limited, etc. |
PERFORMANCE PARAMETER |
Dimension | Scanner: L x W x H :170 x 73 x102(mm) Receiver: L x W x H : 19×14×6(mm) |
Weight | 200g |
Material | ABS+PC |
Battery | Rechargeable lithium battery, 2200mAh 30h (continuous working ) |
Current(working) | 80MA (Operating current), 25MA (Static current), <1uA (Standby current) |
Charging | Micro USB cable charging (charging mode), DC5V (charging voltage), 4.5 hours (charging time) |
Standby time | 6 months (dormant) |
Support interface | USB,USB-VCP(2.4G& micro USB cable mode) |
Transfer Method | 2.4G, bluetooth, micro USB cable |
Indicator | Double LED indicator, buzzer |
Temperature | -20℃-55℃ (operating temperature), -40℃-80℃ (storage temperature) |
Working Humidity | Relative humidity 5% Working humidity-95%(no condensation) |
Illumination | 0-100000 lux |
Certificate
Application
Delivery
RFQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire
bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.
2. Why so competitive?
With over 13 years experience,we're listed barcode scanner
manufacturer in China.We are the Top 3 barcode scanner brand in
China.So large quantity will reduce our raw material cost
directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every
product will test 5 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt
after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are
approved the new high-tech enterprise by the government.Owned many
technical and design patents in different professional fields.
